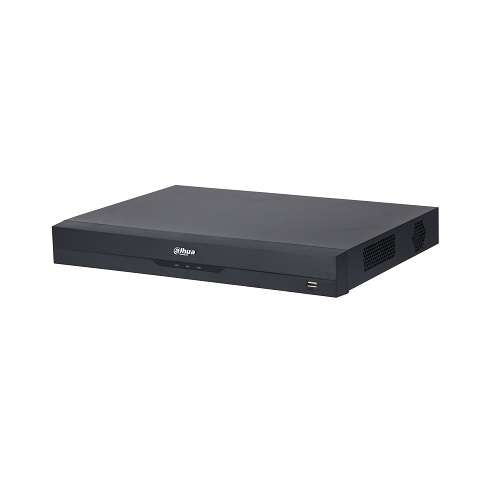

DAHUA XVR5216AN-I2 16-Channel Digital Video Recorder

Original price was: ৳ 18,500.00.Current price is: ৳ 16,700.00.

Key Features

  • Model: XVR5216AN-I2
  • H.265+/H.265 dual-stream video compression
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 24 channels IP camera inputs
  • Each channel up to 6MP; Max 128 Mbps incoming bandwidth

» ঢাকার বাহিরের অর্ডারের ক্ষেত্রে পণ্যের মূল্যের ১৫% বিকাশ মার্চেন্ট নাম্বারে অগ্রিম Make Payment করে অর্ডার নিশ্চিত করতে হবে। অন্যথায় অর্ডার বাতিল হয়ে যাবে।

  Ask a Question
Category: Tag:



Main Processor Embedded Processor
Operating System Embedded LINUX
Audio and Video
IP Camera Input 16+8 channels, each channel up to 6MP
Two-Way Talk Reuse audio in/out, RCA
Interface 1 HDMI,1 VGA
Resolution VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode.
Multi-Screen Display When IP extension mode did not enable: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Compression AI Coding/H.265+/H.265/H.264+/H.264
Resolution 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record Rate Main stream: All channel 5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 1080N/720P/960H/
D1/CIF (1fps–25/30fps)
Sub stream: D1/CIF (1fps–15fps)
Bit Rate 32 Kbps–6144 Kbps Per Channel
Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval 1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
Video Detection And Alarm
Trigger Event Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer, and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm Input N/A
Relay Output N/A
Playback And Backup
Search Mode Time /Date, Alarm, MD, and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Interface 1 RJ-45 Port (1000 MB)
Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 16.12, CGI Conformant
Internal HDD 2 SATA Ports, up to 10TB capacity for each disk
Auxiliary Interface
USB 2 USB Ports (1 USB 2.0 , 1 USB 3.0)
RS232 1 Port, for PTZ Control
RS485 N/A
Power Supply DC 12V/4A
Power Consumption <12W
Component Environment
Operational Conditions -10°C to +55°C (+14°F to +131°F), 0–90% RH
Storage Conditions -20°C to +70°C (-4°F to +158°F) , 0–90% RH
Dimensions 1U, 375 mm × 288 mm × 53 mm
(14.76” × 11.37” × 2.09”)
Net Weight 1.8 kg (4.0 lb)
Gross Weight
3.1 kg (6.8 lb)


DAHUA XVR5216AN-I2 16-Channel Digital Video Recorder

The DAHUA XVR5216AN-I2 Digital Video Recorder comes with H.265+/H.265 dual-stream video compression system. Its Supports HDCVI/AHD/TVI/CVBS/IP video inputs. DAHUA XVR5216AN-I2 16-Channel Digital Video Recorder Max 24 channels IP camera inputs, Each channel up to 6MP; Max 128 Mbps incoming bandwidth. It’s Up to 2 channels of the video stream ( analog channel ) Perimeter Protection. Animals, rustling leaves, bright lights, and other sources of false alerts are automatically filtered out. Allows the system to do secondary recognition of targets. Increasing the accuracy of alarms. DAHUA XVR5216AN-I2 16-Channel Digital Video Recorder Up to 16 channels video stream ( analog channel ) SMD Plus.SMD Plus, also known as Smart Motion Detection Plus, is an upgraded version of SMD that uses a deep-learning system to dramatically enhance alert accuracy. It examines the forms of people and vehicles. The HDCVI system supports long-distance transmission over coaxial cable and UTP, max. 700m for 4K/4MP, 800m for 1080P, and 1200m for 720P. The DAHUA XVR5216AN-I2 Digital Video Recorder comes with a 01-year warranty.
